Exploring the Versatility of Alloy Steel Castings with KT-Foundry

alloy steel castings

Alloy steel castings are integral to modern manufacturing, providing components with unparalleled mechanical properties and corrosion resistance essential for various industries. At KT-Foundry, we specialize in the investment casting process, which involves meticulously pouring molten alloy steel into precision-engineered molds to create complex geometries. This process ensures dimensional precision, material efficiency, and the flexibility to produce custom metal components, meeting the specific needs of our diverse clientele.

Key Takeaways

  • KT-Foundry is a leading expert in alloy steel castings using the investment casting process.
  • Investment casting ensures high dimensional precision and material efficiency, making it suitable for various industries.
  • Custom metal components can be created through investment casting to satisfy the specific needs of diverse clientele.
  • Alloy steel castings offer excellent mechanical properties and corrosion resistance, making them essential in modern manufacturing processes.
  • The expertise of KT-Foundry ensures that high-quality, complex geometries are achieved in their alloy steel castings.

The Investment Casting Process Explained

At KT-Foundry, the investment casting process is characterized by its ability to create metal components with exceptional detail and accuracy. This particular manufacturing method is well-suited for producing parts with intricate designs and near-net shapes, reducing the need for extensive machining. The process can be broken down into several key stages:

  1. Creation of a disposable pattern, often made of wax or plastic.
  2. Coating the pattern in a refractory ceramic material.
  3. Drying the coated pattern.
  4. Melting or burning out the pattern to form a thin, durable ceramic shell mold.
  5. Filling the mold with molten stainless steel.
  6. Allowing the casting to solidify and cool before removing the mold.

Utilizing precision molds to form the ceramic shell allows for outstanding dimensional precision, while casting with molten steel boasts numerous advantages in material efficiency and the ability to produce custom shapes. To visualize the efficiency gains achieved through this process, consider the following table that compares investment casting to other common manufacturing methods:

Manufacturing MethodMaterial EfficiencyDimensional PrecisionAbility to Create Complex Shapes
Investment CastingHighHighHigh
ForgingMediumMediumLow
MachiningLowHighMedium
Die CastingHighMediumMedium

As the table indicates, the investment casting process outperforms other methods in terms of material efficiency, dimensional precision, and the ability to create complex shapes, further emphasizing its value for a vast array of industries.

“The investment casting process at KT-Foundry offers a meticulous approach to forming metal components with exceptional detail and accuracy, ensuring products that meet the specific needs of our diverse clientele.”

In conclusion, the investment casting process, as demonstrated by KT-Foundry, is a superior manufacturing method for producing intricate alloy steel components. From the initial creation of the disposable pattern to the final product, this methodology combines precision and customization, fostering efficiency and quality in every aspect of production.

The Critical Role of Wax Patterns in Alloy Steel Castings

Wax patterns hold a crucial position in shaping the final alloy steel casting product. As the initial step in the investment casting process, the wax, an inexpensive material, is formed into the desired shape and is easily melted from the mold using steam. This primary mold allows KT-Foundry to construct a precise representation of the final product.

Creation of Wax Patterns

The creation process of wax patterns begins with designing a detailed model of the desired component. This model serves as the blueprint for constructing a metal injection die, which is then used to create multiple identical wax patterns. With high dimensional accuracy and intricate casting details, these patterns serve as the foundation for flawless alloy steel castings.

Advantages of Wax Patterns in Investment Casting

  1. Cost-effectiveness: Wax patterns are relatively inexpensive and straightforward to produce, thus lowering overall production costs.
  2. High dimensional accuracy: Utilizing wax patterns allows KT-Foundry to achieve exceptional precision in alloy steel casting components.
  3. Flexibility in design: Wax patterns facilitate the creation of complicated geometries and intricately detailed components that might be challenging with other manufacturing methods.
  4. Efficient production: The ease with which wax is melted and the ability to create multiple patterns using a single injection die accelerates the production process.
  5. Superior surface finish: Wax patterns provide a smooth, polished surface on the final casting, reducing the need for post-casting finishing processes.

Overall, the use of wax patterns in the investment casting process enables KT-Foundry to achieve high dimensional accuracy and intricate details that are essential when creating custom alloy steel components. The reliability of wax for precision offers a cost-effective and efficient approach to complex metal component manufacturing. As a result, the final products meet the specific needs and exacting standards of industries, ranging from automotive to aerospace and beyond.

Understanding the Formation of Ceramic Shell Molds

At KT-Foundry, the creation of ceramic shell molds is a crucial element of the casting process, allowing for the impeccable reproduction of original patterns. The mold formation process involves a series of sophisticated stages to ensure a precise and accurate casting.

Initially, the connected wax patterns, which are clustered around a central sprue, are dipped into a ceramic slurry. This slurry, comprised of fine ceramic particles suspended in a liquid binder, coats the wax patterns uniformly. Upon drying, a durable and thin layer of the ceramic material remains on the wax pattern surface. This process is repeated several times to build up the thickness of the ceramic layer, forming a strong shell around the wax patterns.

  1. Clustered wax patterns are dipped into a ceramic slurry
  2. Ceramic slurry coats the wax patterns
  3. Repeated dipping to build up the thickness of the ceramic layer
  4. Shell is left to dry and harden

“The sophistication of the ceramic shell mold formation process ensures the reproduction of the original pattern’s precision and complexity.”

Once the ceramic shell mold has dried and hardened, it can then be placed into a furnace. The furnace undergoes a controlled heating process to remove any residual wax and strengthen the ceramic shell mold. The mold is then subjected to high temperatures to sinter the ceramic particles, creating a strong and precise mold suitable for holding molten stainless steel.

StepDescription
1. Mold FiringFurnace used to remove residual wax and strengthen ceramic mold
2. Sintering ProcessMold subjected to high temperatures to create a strong casting mold
3. Molten Stainless Steel CastingMold filled with molten stainless steel, resulting in a precise casting when cooled

In conclusion, the detailed process of creating ceramic shell molds involves a series of meticulous steps to ensure the accurate representation of the original pattern. This method employed by KT-Foundry delivers high-quality precision castings and has become an integral part of our expertise in creating customized metal components for clients across various industries.

Customization Possibilities with Alloy Steel Castings

At KT-Foundry, our investment casting process empowers us to provide vast customization of alloy steel castings, making them perfect for a wide range of industry needs. The main advantage of precision casting is its ability to produce near-net-shape components, which in turn, reduces material waste and minimizes machining time. This cost-effective method allows for the creation of versatile metal components, catering to various specifications and requirements.

One of the remarkable features of our process is its capability to create parts in practically any shape, including complex geometries and internal features that would otherwise be challenging to achieve using traditional manufacturing methods. This flexibility is integral to addressing unique design requirements, ensuring the best results for our clients.

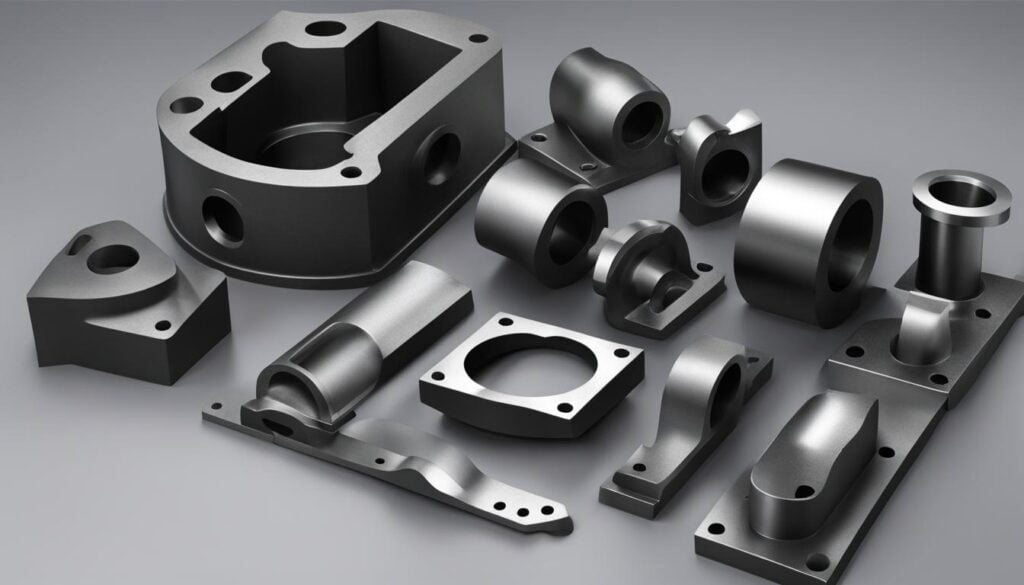

Customization of alloy steel castings

We strive to meet the ever-evolving demands of the market by continually investing in advanced techniques, refining our manufacturing processes, and nurturing a highly skilled team of professionals. Our commitment to innovation enables us to overcome design challenges and produce a variety of intricate castings suitable for diverse applications.

KT-Foundry specializes in the customization of alloy steel castings, empowering a wide range of industries to achieve their unique design requirements with cost-effective precision casting techniques.

Below are some noteworthy customization possibilities that can be achieved using our alloy steel castings:

  1. Complex internal passageways, such as cooling channels, within the component, enhancing performance and efficiency.
  2. Thin-walled and lightweight components, providing material and weight reduction benefits.
  3. Assemblies or multi-part components consolidated into a single piece, reducing assembly costs and improving overall component strength.
  4. Superior surface finish capabilities, reducing or eliminating the need for extensive post-machining operations.

Customization of alloy steel castings is instrumental in achieving optimal performance and functionality for applications across various industries. Our expertise in precision casting fosters our ability to provide tailored solutions that cater to our clients’ most specific and challenging requirements.

The Science of Machining and Surface Finishing

After the casting process, further refinement of our alloy steel components is often required to meet the exact specifications and tight tolerances demanded by our clients. At KT-Foundry, we provide precision machining services for our alloy steel castings, ensuring a reliable and precise finish.

Machining Alloy Steel Castings

Our castings are highly machinable due to the properties of the metal, allowing us to meet component tolerances with ease. The machining process involves the removal of excess material from the castings, shaping them into the desired final product. This process typically features techniques such as:

  • Turning
  • Milling
  • Grinding
  • Drilling

Each technique has its advantages in terms of speed, accuracy, and specific applications.

Enhancing Alloy Steel Castings with Surface Finishing

To improve the material properties and appearance of our alloy steel castings, we employ various surface finishing processes, including passivation, electro-plating, and mechanical polishing. These techniques not only enhance corrosion resistance, but also provide a desirable aesthetic finish, contributing to the longevity and performance of the final product.

Surface Finishing ProcessDescriptionBenefits
PassivationA chemical process that removes iron and other contaminants from the surface of stainless steel, forming a protective oxide layer.Enhanced corrosion resistance
Electro-PlatingA process where a thin layer of metal, such as chromium or nickel, is deposited onto the surface of the casting through electrolysis.Improved appearance and increased durability
Mechanical PolishingA method of polishing the casting using abrasive materials, such as grit or grinding wheels, to achieve a smooth finish.Enhanced surface smoothness and reduced friction

By combining these surface finishing techniques with our machining expertise, KT-Foundry ensures the production of high-quality alloy steel components that meet the diverse needs of our clients across various industries.

Specialized Heat Treatments for Alloy Strength

At KT-Foundry, we employ specialized heat treatments to enhance the strength and corrosion resistance of our stainless steel castings. These treatments allow us to optimize the mechanical properties of our products across various grades of alloy steel. Through processes such as solution annealing and age hardening, we can significantly improve the overall performance of cast components.

While hardening treatments are most effective for martensitic and precipitation-hardening steels, austenitic and other stainless steel types benefit from alternative heat treatments aimed at maximizing corrosion resistance. To better illustrate the impact of these processes, we have compiled a brief comparison of the properties of different stainless steel grades before and after heat treatment.

Stainless Steel TypeBase PropertiesEnhancements from Heat Treatment
AusteniticHigh corrosion resistanceImproved resistance to corrosive environments
MartensiticHigh strength and moderate corrosion resistanceIncreased hardness and wear resistance
Precipitation-HardeningExcellent strength and corrosion resistanceRefined mechanical properties for superior performance

By tailoring our heat treatment processes to the specific needs of the stainless steel grade and application requirements, we enable our customers to benefit from the most advantageous alloy strength enhancements and corrosion resistance properties. This customization ensures the optimal performance and longevity of their components in a variety of demanding applications and environments.

Rapid Prototyping and Its Impact on Casting

The advent of rapid prototyping has revolutionized the casting process by offering the ability to quickly produce plastic patterns through 3D technologies. These patterns are ideal for short runs, samples, or avoiding the creation of wax injection tooling for special projects. At KT-Foundry, we harness the power of this technology to accelerate the design-to-production cycle, enabling faster iterations and product development.

Investment casting innovation benefits immensely from rapid prototyping, as it allows for the creation of precise and complex patterns with minimal lead time. This enables engineers and designers to test and refine their ideas quickly and cost-effectively, leading to better products and reduced development costs.

“Rapid prototyping has enabled us to streamline our investment casting process and significantly reduce the time it takes to bring a product from concept to production. The ability to iterate quickly and assess a design’s viability is invaluable in today’s fast-paced manufacturing landscape.”

Some key advantages of rapid prototyping in casting include:

  • Shorter lead times for initial samples and design iterations
  • Improved design flexibility in accommodating complex geometries
  • Reduced investment in tooling for low-volume production runs
  • Enhanced communication and collaboration between design and manufacturing teams
Traditional Casting ProcessRapid Prototyping (3D Technologies)
Longer lead times for pattern design and productionSignificantly reduced lead times
Limited design flexibility and complexityGreater design flexibility and complexity capabilities
Higher tooling costs for low-volume productionLower tooling costs for short production runs
Slower design-to-production timelineAccelerated design-to-production timeline

Rapid prototyping and 3D technologies have undoubtedly left an indelible mark on the castings industry. As we continue to leverage these advancements, KT-Foundry remains committed to producing high-quality, custom alloy steel castings that meet the diverse needs of our clients across various industries.

Diversity of Stainless Steels Used in Casting

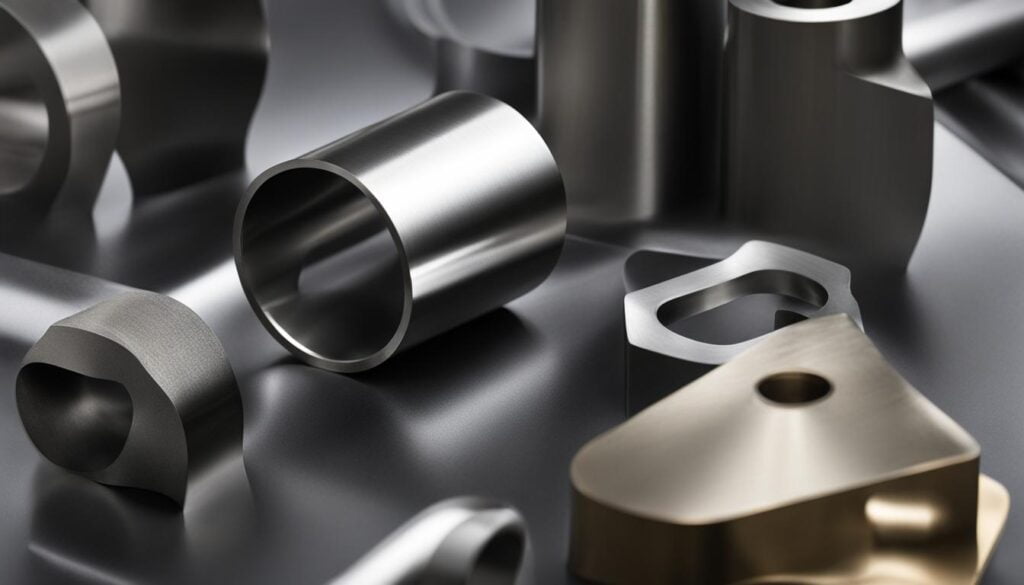

Austenitic and martensitic stainless steel

At KT-Foundry, we recognize the critical role that alloy selection plays in casting, and we offer a diversity of stainless steels to match application-specific requirements. The two primary categories of stainless steel used in our casting processes are austenitic stainless steel and martensitic stainless steel, each with its own unique characteristics and benefits.

Austenitic and Martensitic Stainless Steels

Austenitic stainless steels exhibit excellent corrosion resistance and malleability while being non-magnetic or semi-magnetic with high levels of chromium and nickel. The popular 304 and 316 stainless steel varieties both belong to this category. Conversely, martensitic stainless steels are known for their hardenability and high chromium content, offering particular benefits like abrasion resistance and enhanced strength after heat treatment. Thus, they are suitable for applications that require excellent wear resistance and high mechanical strength.

Austenitic stainless steels are characterized by their excellent corrosion resistance and malleability, whereas martensitic stainless steels are known for their hardenability and wear resistance.

Stainless Steel CategoryKey CharacteristicsCommon Applications
Austenitic Stainless Steel
  • Excellent corrosion resistance
  • High levels of chromium and nickel
  • Non-magnetic or semi-magnetic
  • Malleable
  • Food processing equipment
  • Chemical and pharmaceutical industry
  • Marine applications
Martensitic Stainless Steel
  • High chromium content
  • Hardness and wear resistance
  • Magnetic
  • Hardenable with heat treatment
  • Cutting tools
  • Gears and bearings
  • Valve components

Diverse alloy selection enables us to choose the right material based on the specific requirements of each project. Our expertise in working with various categories of stainless steel ensures that every casting produced meets the performance standards and longevity expectations of our clients.

Exploring the Mechanical Properties of Alloy Steel

Alloy steel castings produced by KT-Foundry possess several key mechanical properties that contribute to their widespread use in various industries. In particular, these alloys exhibit remarkable abrasion resistance and strength, alongside impressive corrosion resistance. These characteristics make them a highly versatile material capable of meeting the demands of the most challenging applications.

Abrasion Resistance and Strength

Martensitic stainless steel alloys, which can be hardened to exceedingly high levels, showcase excellent abrasion resistance and strength. This inherent strength makes these alloys ideal for heavy-duty applications where durability is essential, such as manufacturing and construction industries. The table below illustrates the improved abrasion resistance and strength found in common alloy steels:

Stainless Steel AlloyHardness (HRC)Abrasion Resistance
17-4PH38-45High
15-5PH36-42High
41042-47Moderate
440C57-62Excellent

Unveiling Corrosion Resistance in Alloys

Alloy steel castings are highly valued for their natural corrosion resistance, which is predominantly due to the presence of chromium in the alloy. When chromium comes into contact with oxygen, it forms a protective oxide layer on the surface of the alloy that guards against corrosion. Additionally, molybdenum is often added to enhance the material’s resistance to corrosive environments even further.

The following list demonstrates some of the stainless steel alloys used by KT-Foundry, along with their respective protective properties:

  • 304/304L: Increased resistance to general corrosion, including pitting and crevice corrosion
  • 316/316L: Exceptional corrosion resistance in various environments, suitable for use in marine applications
  • 317L: Offers improved corrosion resistance in comparison to 316/316L alloys, particularly in sulfuric acid environments
  • 904L: Exhibits exceptional corrosion resistance in highly corrosive environments, including warm seawater and sulfuric acid solutions

In conclusion, the combination of abrasion resistance, strength, and corrosion resistance present in alloy steel castings makes them a highly versatile and desirable material for a variety of industries. By carefully selecting the appropriate stainless steel alloys, KT-Foundry can manufacture components with protective properties that help ensure their long-lasting durability in even the harshest environments.

Alloy Steel Castings Across Industries

Alloy steel castings play a crucial role in various industries due to their exceptional mechanical properties, corrosion resistance, and hygienic qualities. These castings cater to the diverse needs of fluid handling, food processing equipment, medical industry applications, construction, and high-temperature alloy steel components.

Fluid Handling and Food Processing Equipment

KT-Foundry specializes in manufacturing alloy steel castings that withstand the rigors of fluid handling and food processing environments, featuring high-quality material and design. Notable components include valve parts, pump bodies, and food-grade equipment, which maintain cleanliness and resist corrosion.

IndustryAlloy Steel Components
Fluid HandlingValve components, pump bodies
Food ProcessingFood-grade equipment, stainless steel applications

Medical, Construction, and High-Temperature Applications

Alloy steel castings from KT-Foundry are integral for the medical and construction industries as well as high-temperature applications like turbine engines and petrochemical processing. These industries demand materials that provide endurance and resilience due to their extreme operating conditions. Our alloy steel castings meet these stringent requirements through their combination of strength, durability, and performance under extreme conditions.

Alloy steel castings: Your reliable choice for medical, construction, and high-temperature applications.

  1. Medical Industry: Surgical instruments, prosthetics, medical implants
  2. Construction: Heavy machinery components, structural connectors, gear components
  3. High-Temperature Applications: Turbine engines, petrochemical processing, heat-resistant castings

The Future of Alloy Steel Castings and Industry Innovations

As KT-Foundry looks to the future, we are poised to embrace emerging trends in alloy casting, including enhanced high-temperature performance and the integration of additive manufacturing. These advancements will allow us to optimize our alloy compositions and develop new surface modification techniques to improve the performance of our castings.

Emerging TrendsImpact on Alloy Casting
Enhanced High-Temperature PerformanceProvides greater resilience and durability for applications exposed to extreme heat conditions.
Additive ManufacturingAllows for more complex geometries and reduced material waste in the casting process.
New Surface Modification TechniquesImprove corrosion resistance and overall performance of the cast components.

Emerging Trends in Alloy Casting

Innovations in materials engineering and casting research are driving the emergence of ever-more efficient and reliable alloy steel casting methodologies. The incorporation of advanced computational techniques, data-driven modeling, and refined processing methods will continue to push the boundaries of alloy performance and longevity. These emerging advancements will help us stay ahead of industry demands and deliver high-quality, innovative solutions to our clients.

The Commitment to Advancing Alloy Steel Technologies

As we continue to invest in research and development in the alloy steel casting industry, our aim is to remain at the forefront of technological advancements and offer state-of-the-art solutions tailored to our clients’ specific needs.

Our commitment to advancing alloy steel technologies encompasses a rigorous dedication to exploring new alloy blends and processing methods. We are continuously refining our techniques and striving to stay abreast of the latest cutting-edge developments in the field. This unwavering attention to detail ensures that we maintain our leading role in alloy steel casting innovation.

  • Active participation in industry conferences and symposiums
  • Collaboration with university research departments and laboratories
  • Exploration of emerging techniques such as additive manufacturing and digital design tools

Our dedication to industry advancement is a central component of KT-Foundry’s vision – to provide exceptional casting solutions for our diverse clientele. By investing in the future of alloy steel casting, we are helping to shape a more efficient, innovative, and sustainable industry.

Conclusion

In conclusion, alloy steel castings play a significant role in modern manufacturing and various industries. As an industry leader, KT-Foundry is committed to adapting to the industry outlook and continuing to provide exceptional components and services to our clients. Our investment in technology, process improvements, and collaboration underscores our ongoing commitment to excellence in the casting industry.

Our expertise in alloy steel castings has allowed us to develop a range of versatile and high-quality products, benefiting industries from fluid handling and food processing to medical and construction. As we embrace emerging trends and advancements in alloy casting, we are dedicated to exploring new alloy blends and processing methods to meet the ever-evolving demands of modern industries.

We understand the critical impact of alloy selection and mechanical properties on the casting process and the final product. As a result, KT-Foundry remains adamant about driving innovations that shape the future of alloy steel manufacturing. Our comprehensive approach, dedication to research and development, and commitment to maintaining our place at the forefront of the casting industry, position us to continue delivering superior alloy components across various applications and sectors.

FAQ

What is the investment casting process?

The investment casting process is a manufacturing method that involves pouring molten alloy steel into precision-engineered molds to create complex geometries. This process ensures dimensional precision, material efficiency, and the flexibility to produce custom shapes, meeting the specific needs of diverse clientele.

Why are wax patterns important in alloy steel castings?

Wax patterns play a critical role in shaping the final alloy steel casting product. They allow for the creation of a precise representation of the final product and enable high dimensional accuracy and intricate details in the casting process.

What is the purpose of ceramic shell molds in the casting process?

Ceramic shell molds are used to form a thin, durable mold capable of holding molten stainless steel during the casting process. This method enables the production of parts with intricate designs and near-net shapes, reducing the need for extensive machining.

How does KT-Foundry allow for customization in alloy steel castings?

KT-Foundry’s investment casting process offers vast customization capabilities for alloy steel castings by allowing for the creation of parts in virtually any shape, including complex geometries and internal features that would be challenging with other manufacturing methods. This process offers reduced material waste and machining time, making it a cost-effective solution.

Can alloy steel castings be machined and surface finished?

Yes, KT-Foundry provides precision machining services for alloy steel castings to meet exact specifications and tight tolerances. Additionally, various surface finishing processes such as passivation, electro-plating, and mechanical polishing are employed to enhance corrosion resistance, provide a desirable aesthetic finish, and contribute to the longevity and performance of the final product.

What heat treatments are used to enhance the strength of alloy steel castings?

Specialized heat treatments such as solution annealing and age hardening are used to optimize the mechanical properties, strength, and corrosion resistance of different grades of stainless steel castings.

How does rapid prototyping impact the casting process?

Rapid prototyping allows for the quick production of plastic patterns using 3D technologies, ideal for short runs, samples, or special projects without the need for wax injection tooling. This technology helps to accelerate the design-to-production cycle, enabling faster iterations and product development.

What are some of the mechanical properties of alloy steel castings?

The mechanical properties of alloy steel castings include excellent abrasion resistance, strength, and inherent corrosion resistance. These properties ensure the long-lasting durability of the components produced by KT-Foundry.

In which industries are alloy steel castings commonly used?

Alloy steel castings have diverse applications across various industries such as fluid handling, food processing, medical, construction, and high-temperature applications like turbine engines and petrochemical processing.

What are some emerging trends in alloy casting?

Emerging trends in alloy casting include enhanced high-temperature performance and the integration of additive manufacturing. These advancements will allow for the optimization of alloy compositions and the development of new surface modification techniques to improve the performance of castings.
